Topcon GAAJ Diamond Proportion Scope (c. 1967)

This finely engineered handheld instrument represents an important moment in the global standardization—and regional divergence—of diamond cut evaluation. The Topcon Diamond Proportion Scope was designed to enable rapid, portable assessment of a polished diamond’s proportions, translating optical observation into measurable geometric relationships that define brilliance and value.

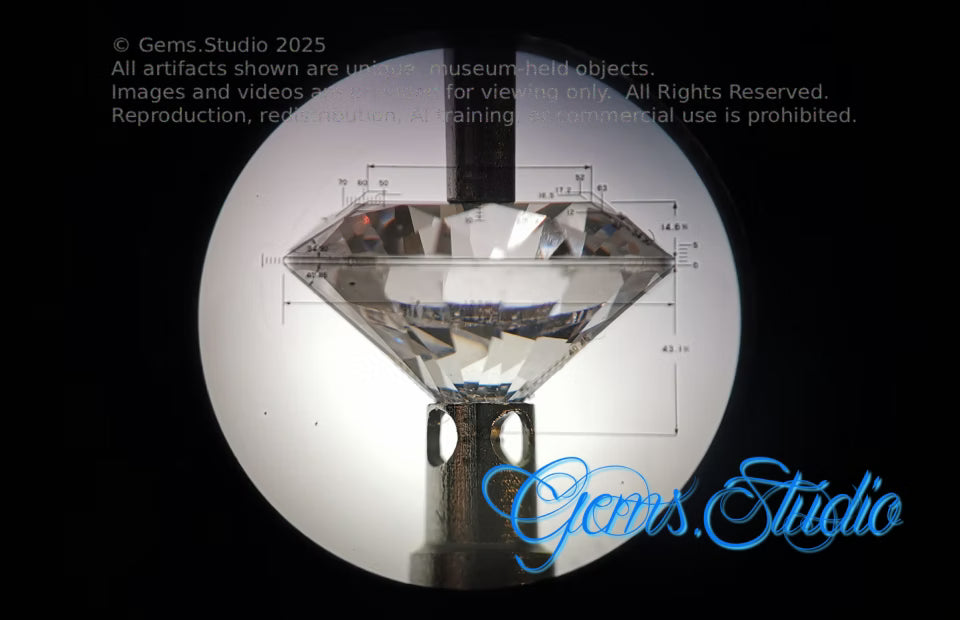

Unlike its American counterparts, particularly those associated with the Gemological Institute of America (GIA), this Japanese instrument reflects European-influenced proportion standards. Its internal scale diagram is based on the S.G.A.N./Scandinavian (SCAN D.N.) model of the “ideal cut,” which differs subtly yet significantly from the modified Marcel Tolkowsky proportions widely adopted in the United States. Most notably, the Topcon scale favors a larger table facet—approximately 57.5% of the girdle diameter—compared to the 53% standard in the American system. Correspondingly, the crown height is slightly reduced, reflecting differing philosophies regarding the balance between fire and brilliance  These distinctions embody a broader dialogue in gemmology, where “ideal” is not absolute but culturally and scientifically interpreted.

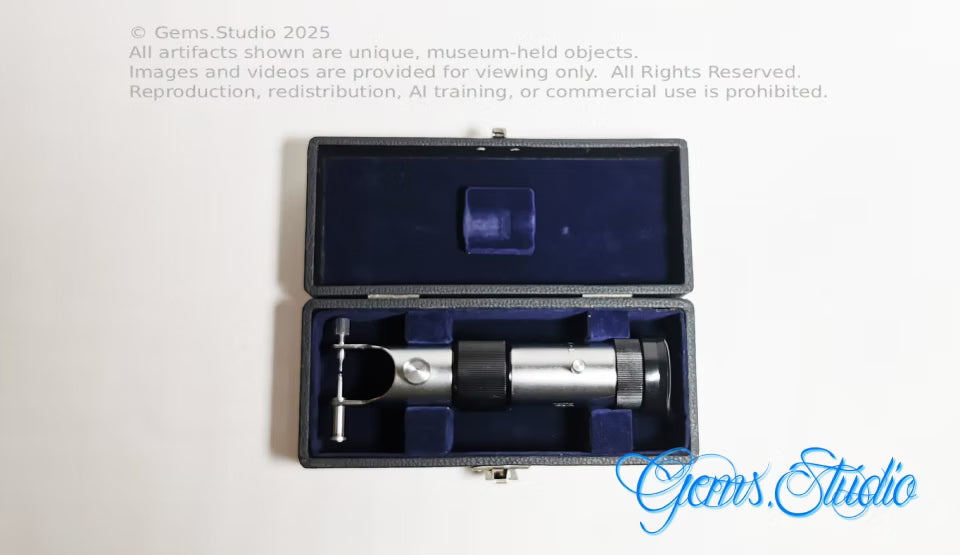

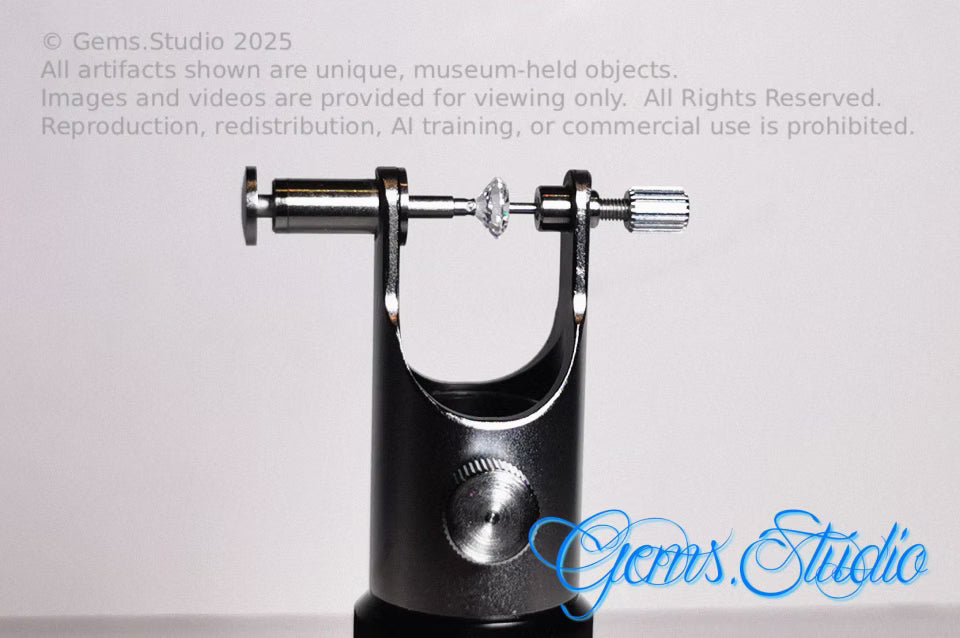

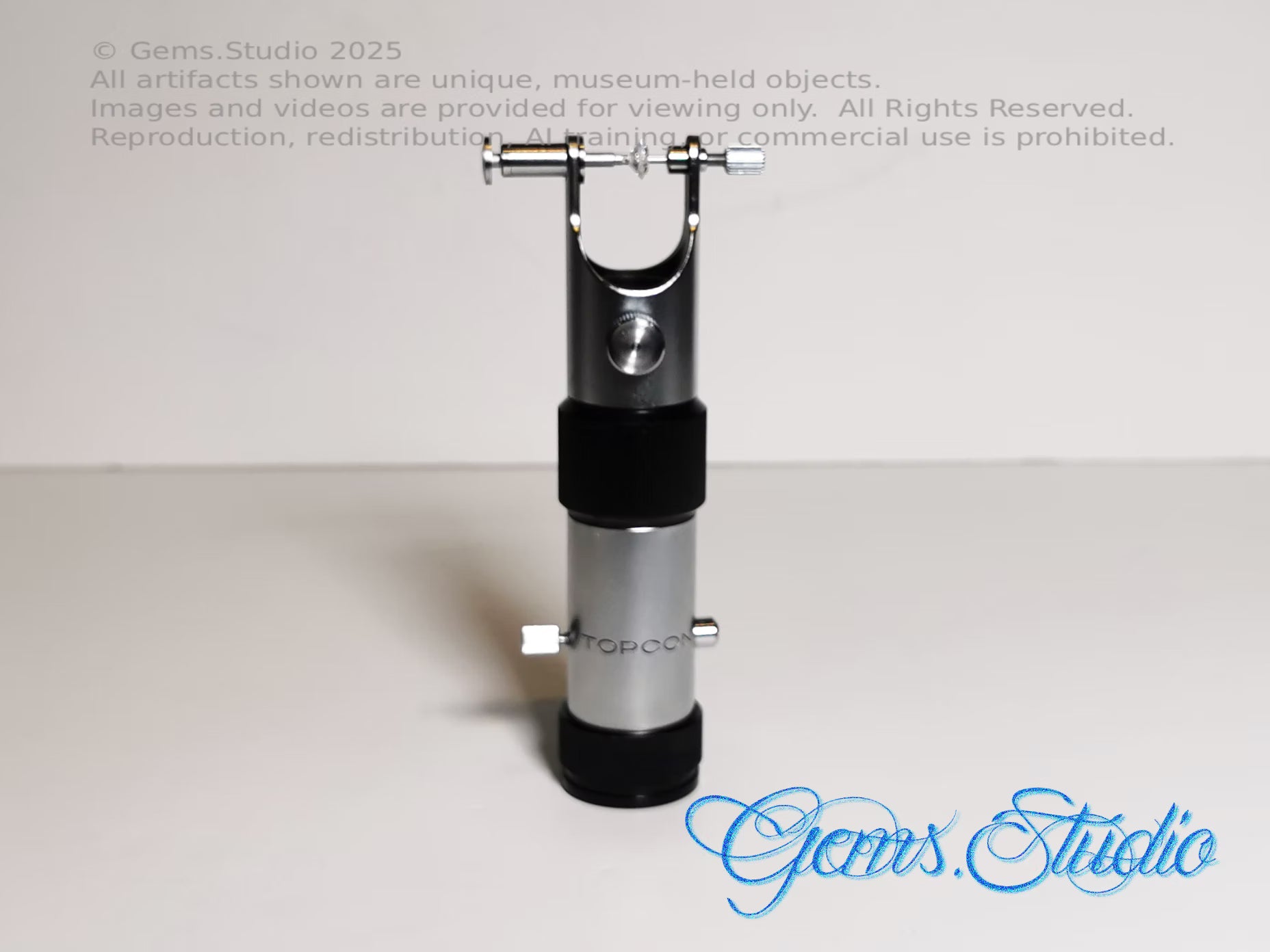

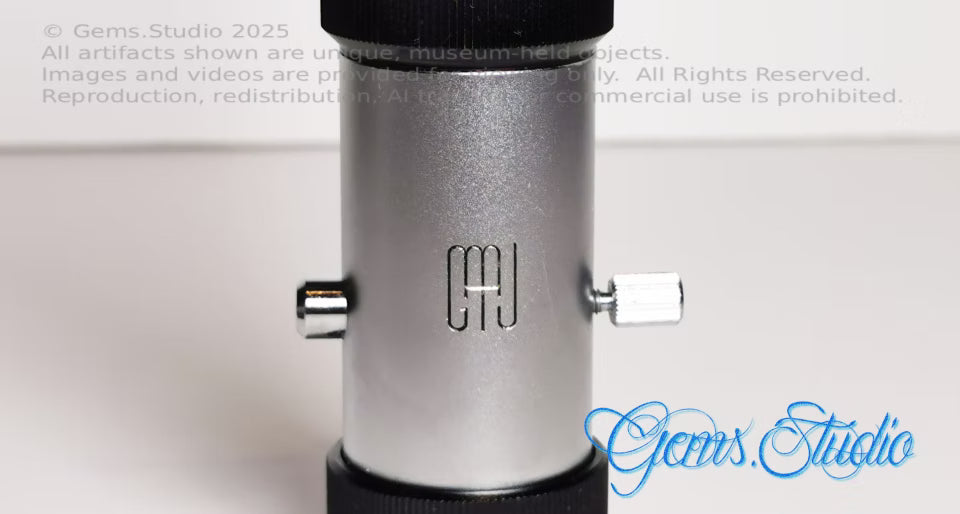

The instrument’s design emphasizes practicality and field usability. Its principal advantage lies in its portability: unlike microscope-mounted proportion scopes or electrically powered systems such as the Gemolite, the Topcon hand scope operates entirely without external power. A diamond is secured within the device by a precision clamping mechanism—pressed gently between a screw-adjusted plate at the table and a spring-loaded tubular mount accommodating the culet. This arrangement ensures central alignment, while fine adjustment screws allow horizontal and vertical calibration within the eyepiece.
