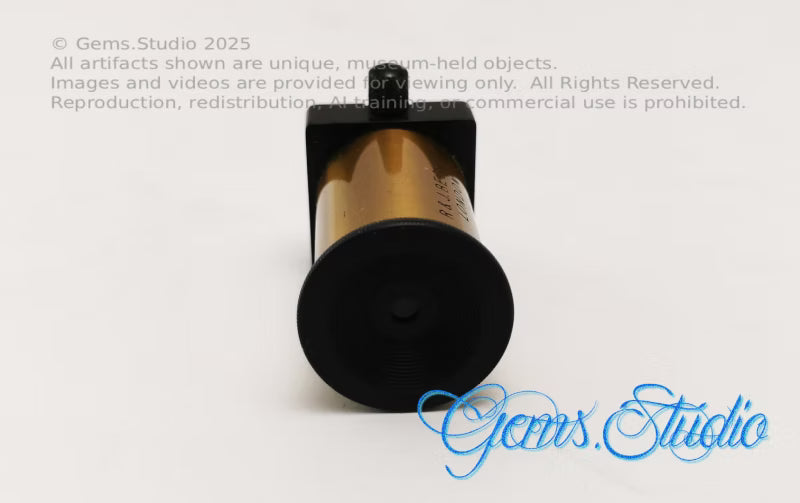

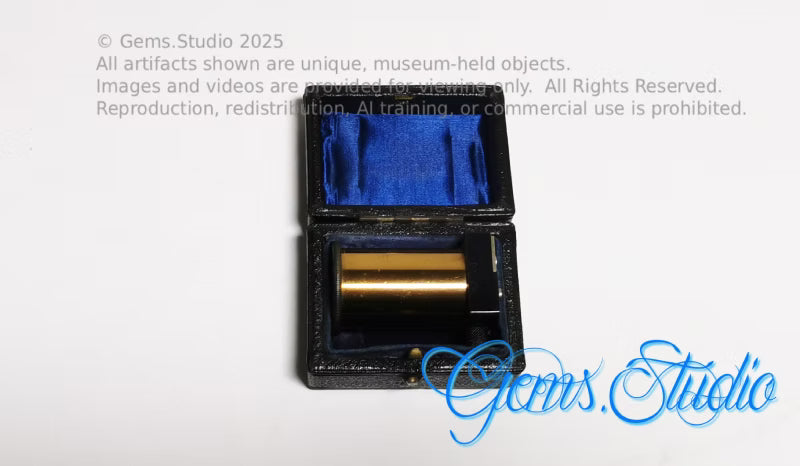

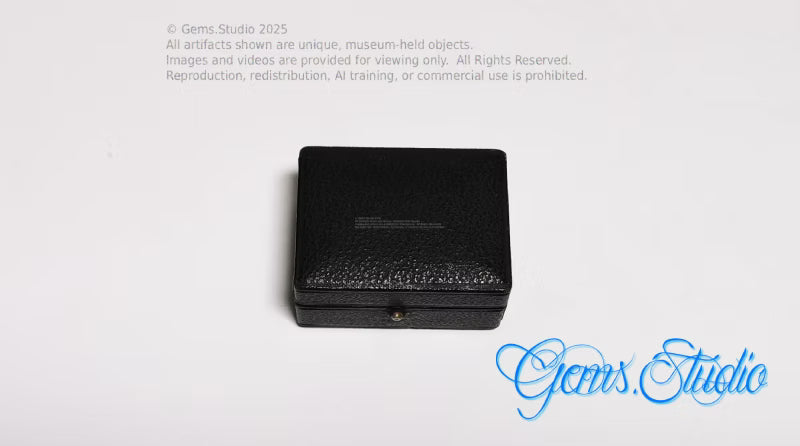

Beck Spectroscope No. 2447 (c. 1950s)

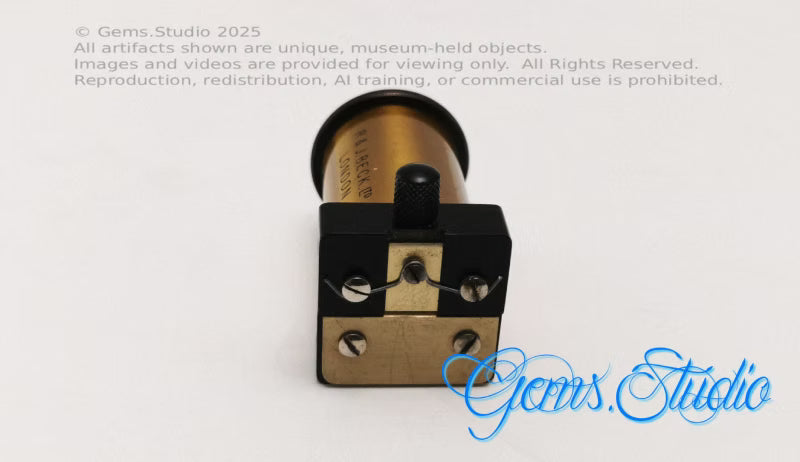

"No. 2447 is constructed on similar principles to the No. 2444 but it is provided with an adjustable slit, the width of which can be varied by means of a milled head.  The effect of this variation of the slit is to alter the special value for distinguishing lines which are very close together.  A focussing adjustment is provided, and the dispersion is 11°.  On one side of the slit is a large tapped hole so that the spectroscope may be attached to the stand No. 2437... On the other side of the slit are two small tapped holes for the attachment of the cylindrical lens No. 2496 or the test tube holder No. 2697... This spectroscope is suitable for general simple work and readily shows the Frauenhofer lines and rainbands." (pp. 3, Beck Spectroscope by R. & J. Beck, Ltd. 1952)

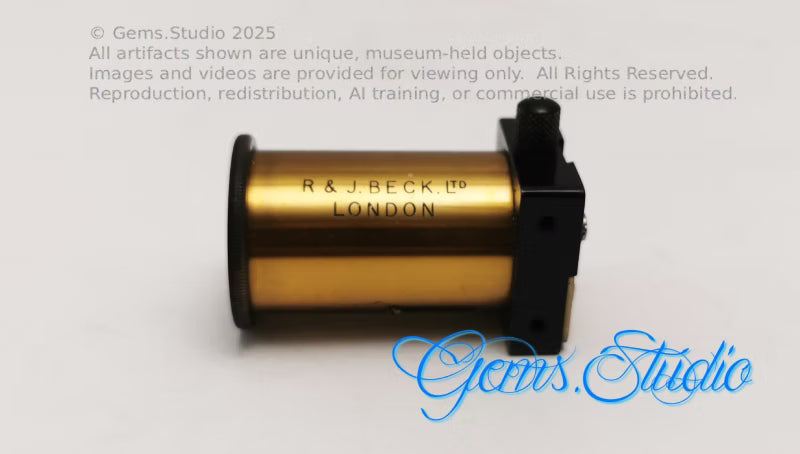

Manufactured by R. & J. Beck Ltd., this compact spectroscope exemplifies the firm’s longstanding tradition of precision optical engineering for laboratory and educational use. Unlike later instruments adapted specifically for gemology, this example was produced as a general-purpose scientific spectroscope, intended for the observation of emission and absorption spectra in fields such as chemistry, physics, and mineralogy. Its serial number, No. 2447, reflects Beck’s systematic production during a period when British instrument makers played a central role in supplying universities and research institutions worldwide.

The instrument features a polished brass body, characteristic of earlier optical devices prior to the widespread adoption of fully blackened housings. This finish, both functional and visually refined, reflects an era when craftsmanship and material quality were integral to scientific apparatus. The spectroscope incorporates a prism-based optical system with an adjustable slit assembly, allowing light from a sample source to be dispersed into its բաղvisible spectrum. Fine mechanical controls enable the user to regulate light प्रवेश and sharpen spectral definition, facilitating the study of elemental signatures through characteristic spectral lines.

Although not originally designed for gemological applications, instruments of this type were later adopted by gemologists as spectroscopy became an important diagnostic tool in gemstone identification. In that secondary context, the spectroscope allowed practitioners to observe absorption features associated with trace elements responsible for color. This example thus represents a broader class of scientific instruments that, while conceived for general laboratory use, were subsequently integrated into the evolving toolkit of gemology—bridging disciplines and illustrating the transfer of analytical techniques across scientific fields.
